Enerdrive 12V Pure Sine Wave Inverter – 2000W with Integrated AC Switch

Description

ePOWER 2000W True Sine Wave Inverter with AC Transfer Switch & Safety Switch.
Also included in the unit is a RCD Safety Switch. This switch monitors the flow of electricity through the inverter and detects any problems that may pose a risk to personal safety and switches the output power off within 0.03 of a second. The ePOWER 2000W is built to operate basic equipment such as power tools, computers, microwave ovens, televisions and other appliances that use up to 2000W of power for operation.

EN1120-X

Usually available 24 hours in-store after purchase

Features:

• Seamless 16A AC Internal Transfer Switch
• AC RCD/Safety Switch with test button

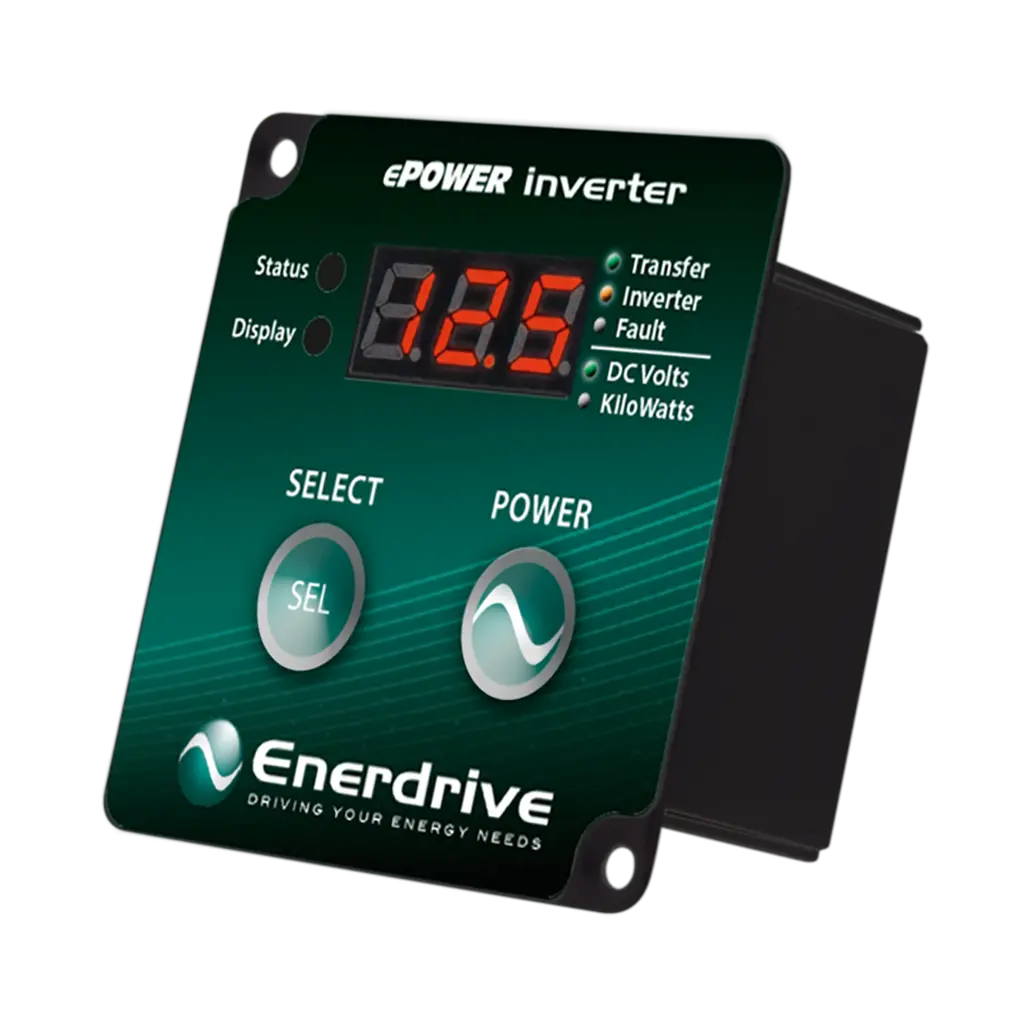

• Removable LED Remote Control Display Panel
• Regulated Pure Sine Wave Output
• Silent Operation
• Compact Size for Easy Installation
• USB Port for charging USB devices
• 5 years warranty

Suitable for:

• Recreational vehicles
• Service vehicles
• Maritime applications
• Off-grid systems

Specifications:

• AC Output Power: 2000W
• AC Output Current: 8.7A
• AC Output Voltage: 230 VAC / 50 Hz
• AC Output Waveform: Sinewave (<3% THD)
• Nominal DC Input Voltage: 24.5 VDC
• No Load battery draw: < 1.5 ADC
• DC Input Voltage operating range: 10.5 – 15.5 VDC
• Under Voltage Alarm: 11.0 / 12.1 VDC
• Under Voltage Alarm Recovery: 11.3 / 12.3 VDC
• Under Voltage Shutdown: 10.5 / 11.8 VDC
• Under Voltage Shutdown Recovery: 12.0 / 12.6 VDC
• Over Voltage Shutdown: 15.5 VDC
• USB Port: 5V, 750 mA
• Transfer Time:  < 30 ms
• Transfer Relay Rating:  16A (resistive load)
• AC Input socket IEC-C20:  16A max
• AC Output socket IEC-C19:  16A max
• AC Output Front GPO: 10A max
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 60°C
• Relative Humidity: 5 – 90% non-condensing
• Operating Altitude: Up to 3000 meters above sea level
• Weight: 5.9 kg
• Dimensions (W x L x H): 435 x 230 x 115 MM
• Warranty: 5 Years

Conformance

• All required Australian Standards , CE LVD: EN/IEC 62040-1, IEC61558-2-16
• EMI / EMC: CE EMC: EN/IEC 62040-2 category C1
• Agency Markings: RCM , CE
