Description

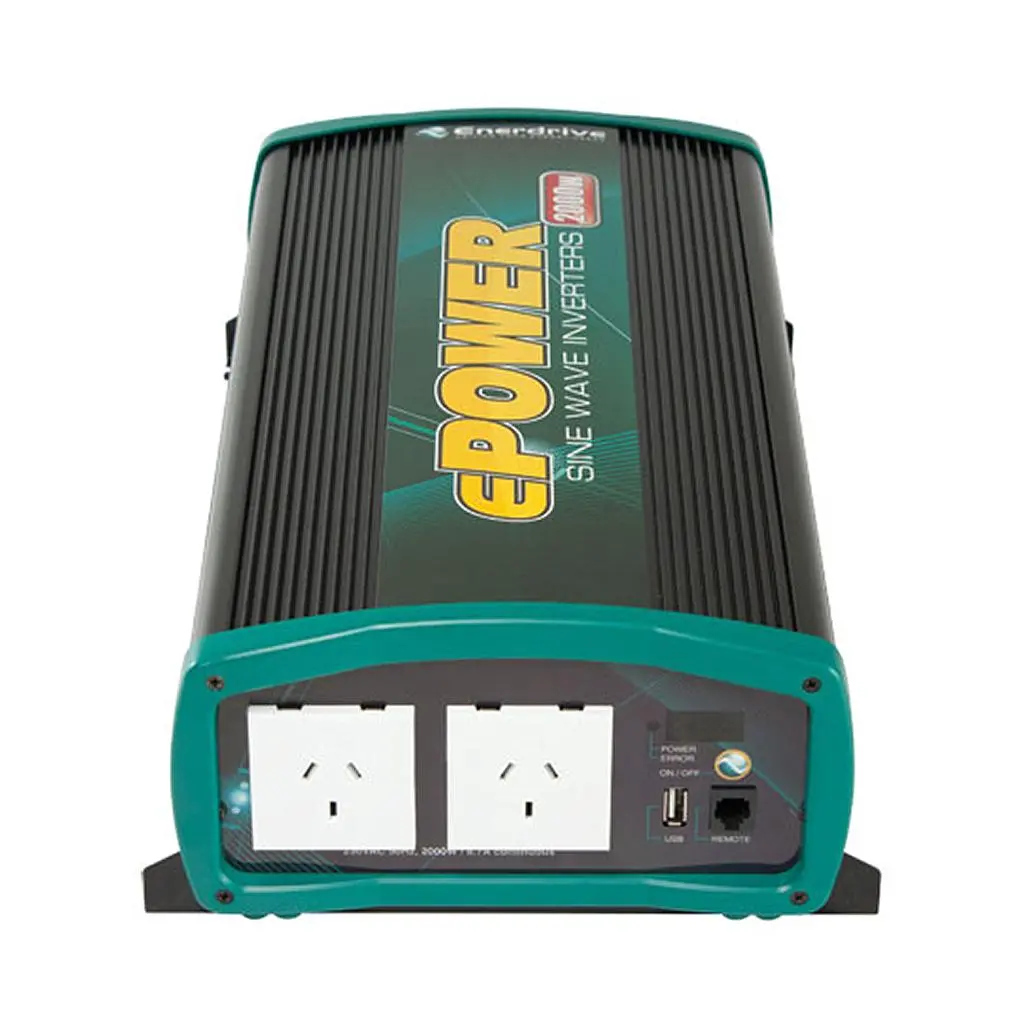

The Enerdrive ePOWER Inverter can run many AC powered appliances when you need AC power anywhere. The 5V USB power can charge many USB powered devices.
EN1120S
Usually available 24 hours in-store after purchase
Features:
- True sine wave output
- Audio alarm with warning/error codes
- Automatic shutdown protects overload, over temperature and low/high battery conditions
- High surge capacity
- High efficiency conversion of battery available power to AC power
- Mounting brackets for permanent installation
- Heavy duty DC battery stud connectors
- Includes 5V USB port
-
2 years warranty
Suitable for:
- Recreational vehicles
- Service vehicles
- Maritime applications
- Off-grid systems
Specifications:
| AC Output Power | 2000W |
| AC Surge Power (Peak) | 4000W |
| AC Output Current | 8.7A |
| AC Output Voltage | 230 Vac / 50 Hz |
| AC Output Waveform | True Sinewave |
| AC Output Socket | 2 outlets |
| Nominal DC Input Voltage | 12.5 VDC |
| No Load battery draw | < 1.2 ADC |
| DC Input Voltage operating range | 10.5 – 15.5 VDC |
| Under Voltage Alarm | 11.2 VDC |
| Under Voltage Shutdown | 10.5 VDC |
| Under Voltage Recovery | 11.8 VDC |
| Over Voltage Shutdown | 15.5 VDC |
| USB | 5V, 2.1A |
| Conformance | All required Australian Standards |
| Agency Markings | RCM |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 5-90% noncondensing |
| Operating Altitude | Up to 3000 meters above sea level |
| Weight | 5.5Kg |
| Dimensions (W x L x H) | 230 x 416 x 110mm |
| Warranty | 2 Years |
| Load | Consumption | Estimate Run time |
|---|---|---|
| Cordless Phone | 5W | 80 hrs |
| Clock/Radio | 8W | 65 hrs |
| Table Lamp | 40W/60W | 22 hrs/ 15 hrs |
| Freezer (8.8 cu. ft.) | 80W | 12 hrs |
| 20″ LCD TV | 100W | 10.5 hrs |
| Refrigerator (18 cu. ft.) | 120W | 8.3 hrs |
| Microwave (mid-size) | 1000W | 44 min |
| Coffee Maker | 1200W | 35 min |
| Vacuum | 1400W | 28 min |
Above run time is an estimate based on using a 12V-240AH battery bank for reference (Depth of discharge to 50%). Actual run time may vary.
Enerdrive Pty Ltd has been providing independent power systems to the Australian market since 1996.
