Description
IN STORE PICK UP ONLY FROM EAST TAMAKI
320W SOLAR PANEL
320W PANEL
320W SOLAR
320W MONO SOLAR PANEL
50W SOLAR PANEL
100W SOLAR PANEL
150W SOLAR PANEL
200W SOLAR PANEL

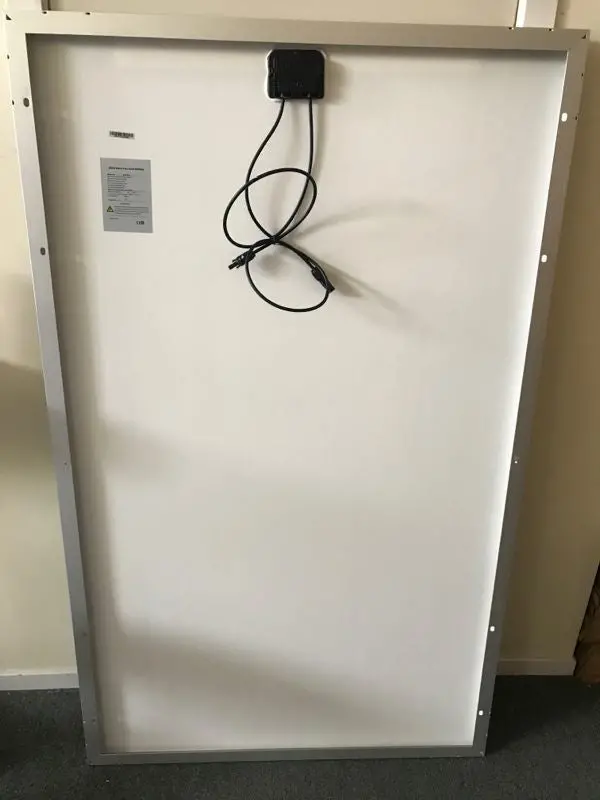

320W solar panels
DIMENSIONS
1640mm x 992mm x 30mm
TECHNICAL DATA SHEET
Technical Data
Type
Type of Solar Cell Mono-crystalline,
Number of Cells 60 pcs
Size of module
Module, Weight 18 kg
Connector / Cross-Section Junction Box
Cables, Length (+/-) Customizable
Front Cover Glass Safety Glass
Front Cover Glass, Thickness 3.2 mm
Frame Anodized Aluminium
Electrical Data
Maximum Power PMPP STC 320W
Power Tolerance ?STC +3%
Maximum Power Current IMPP STC 10.15A
Open circuit voltage:41v
Voltage at Pmax: 33.3v
Short circuit current:10.15A
Current at Pmax : 9.61A
Maximum System Voltage UDC 1000V
STC: Irradiance 1000 W/m²;Spectrum AM 1.5;Cell Temperature 25°C, Wind 0 m/s
Temperature Coefficients
Power Coefficient ak(PMPP) -0.50±0.05%/K
Voltage Coefficient ßk(Uoc) -0.35±0.01%/K
Current Coefficient Fk(Isc) 0.065±0.015%/K
Certifications
IEC 61215, IEC 61730 ,TUV, CE, ISO9001:2000
Warranty: 12 months
