Description

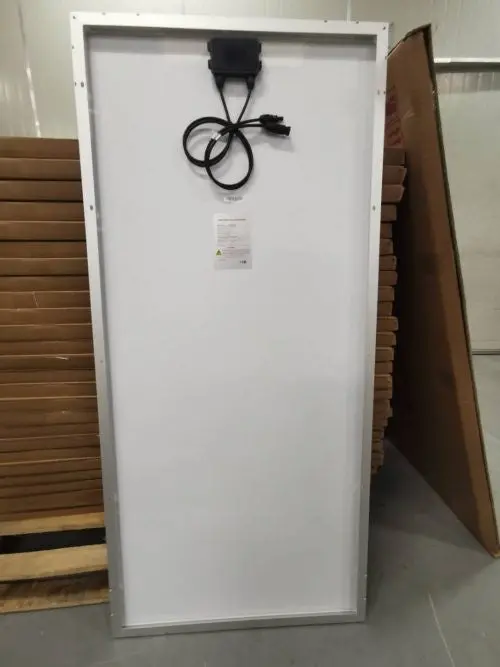

200W SOLAR PANEL
200W PANEL
200W SOLAR
200W MONO SOLAR PANEL
50W SOLAR PANEL
100W SOLAR PANEL
150W SOLAR PANEL
200W SOLAR PANEL
DIMENSIONS in MM
1480 X 680 X 35
TECHNICAL DATA SHEET
Technical Data
Type
Type of Solar Cell Mono-crystalline,
Number of Cells 36 pcs
Size of module
Module, Weight 12 kg
Connector / Cross-Section Junction Box
Cables, Length (+/-) Customizable
Front Cover Glass Safety Glass
Front Cover Glass, Thickness 3.2 mm
Frame Anodized Aluminium
Electrical Data
Maximum Power PMPP STC 200W
Power Tolerance ?STC +3%
Maximum Power Voltage UMPP STC 19.7V
Maximum Power Current IMPP STC 10.15A
Open Circuit Voltage UOC STC 23.3V
Short Circuit Current ISC STC 11.22A
Cell Efficiency ?STC 22.9 %
Maximum System Voltage UDC 1000V
STC: Irradiance 1000 W/m²;Spectrum AM 1.5;Cell Temperature 25°C, Wind 0 m/s
Temperature Coefficients
Power Coefficient ak(PMPP) -0.50±0.05%/K
Voltage Coefficient ßk(Uoc) -0.35±0.01%/K
Current Coefficient Fk(Isc) 0.065±0.015%/K
Certifications
IEC 61215, IEC 61730 ,TUV, CE, ISO9001:2000
Warranty: 12 months
