Ultimate All-in-One Motion Simulation Package – Complete Setup

Description

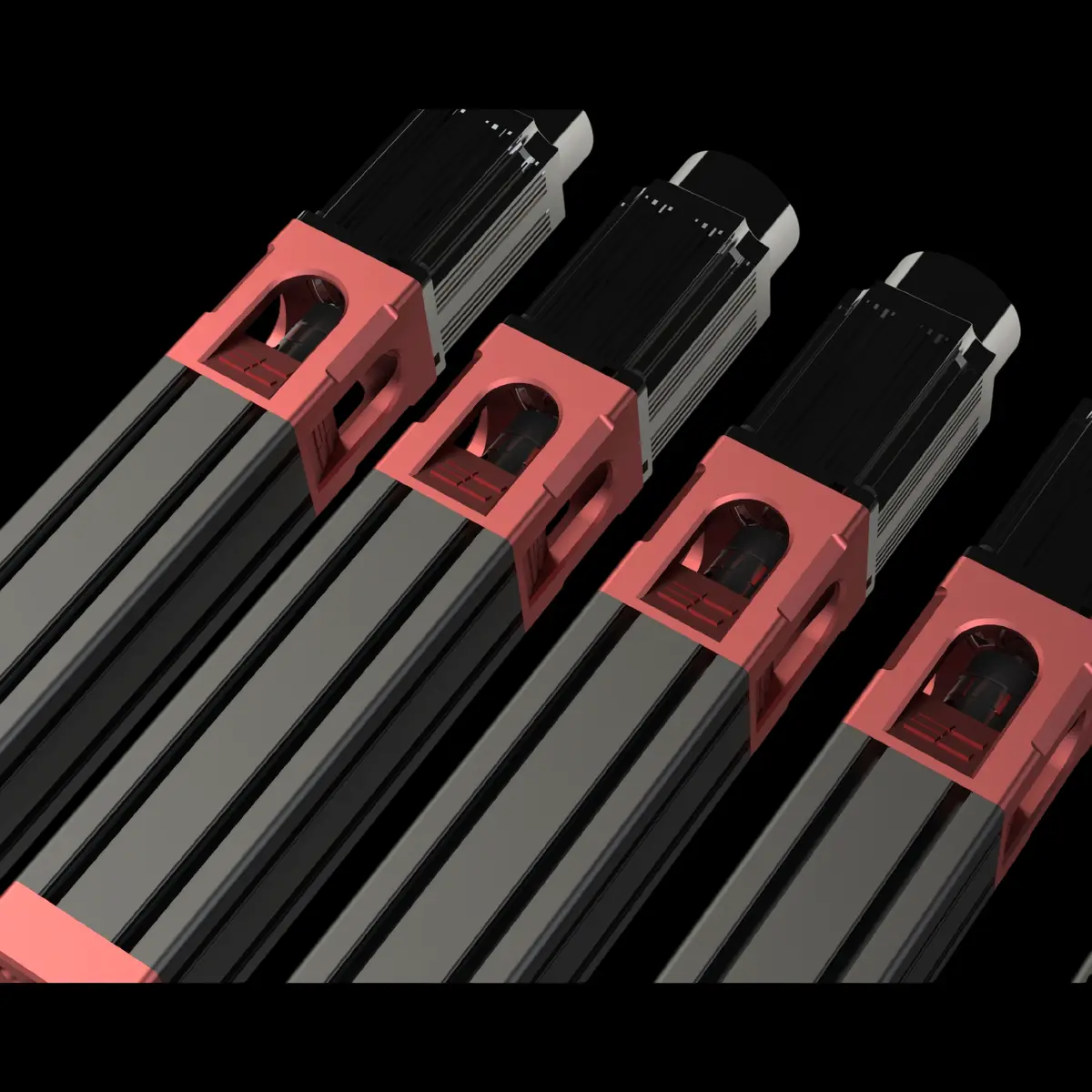

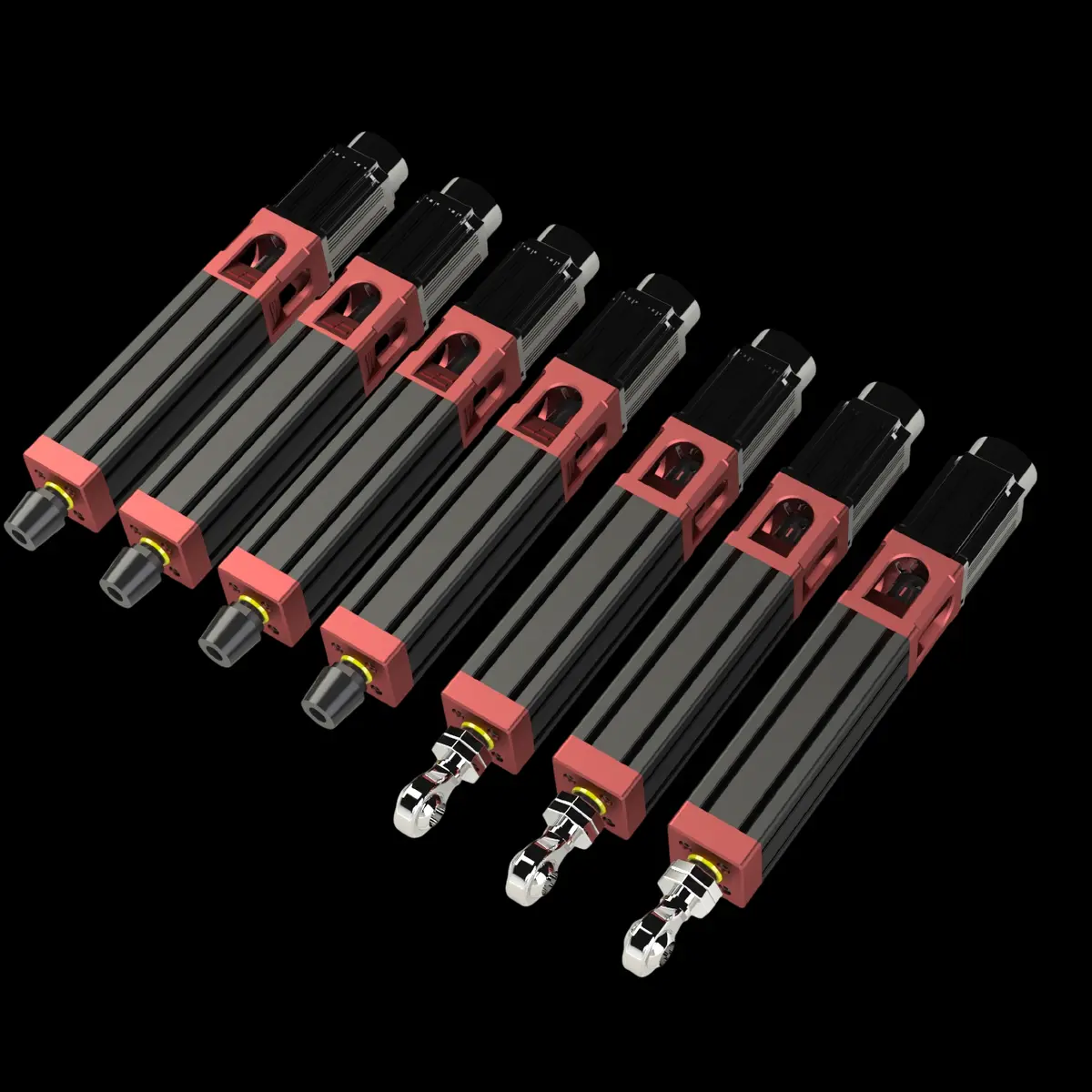

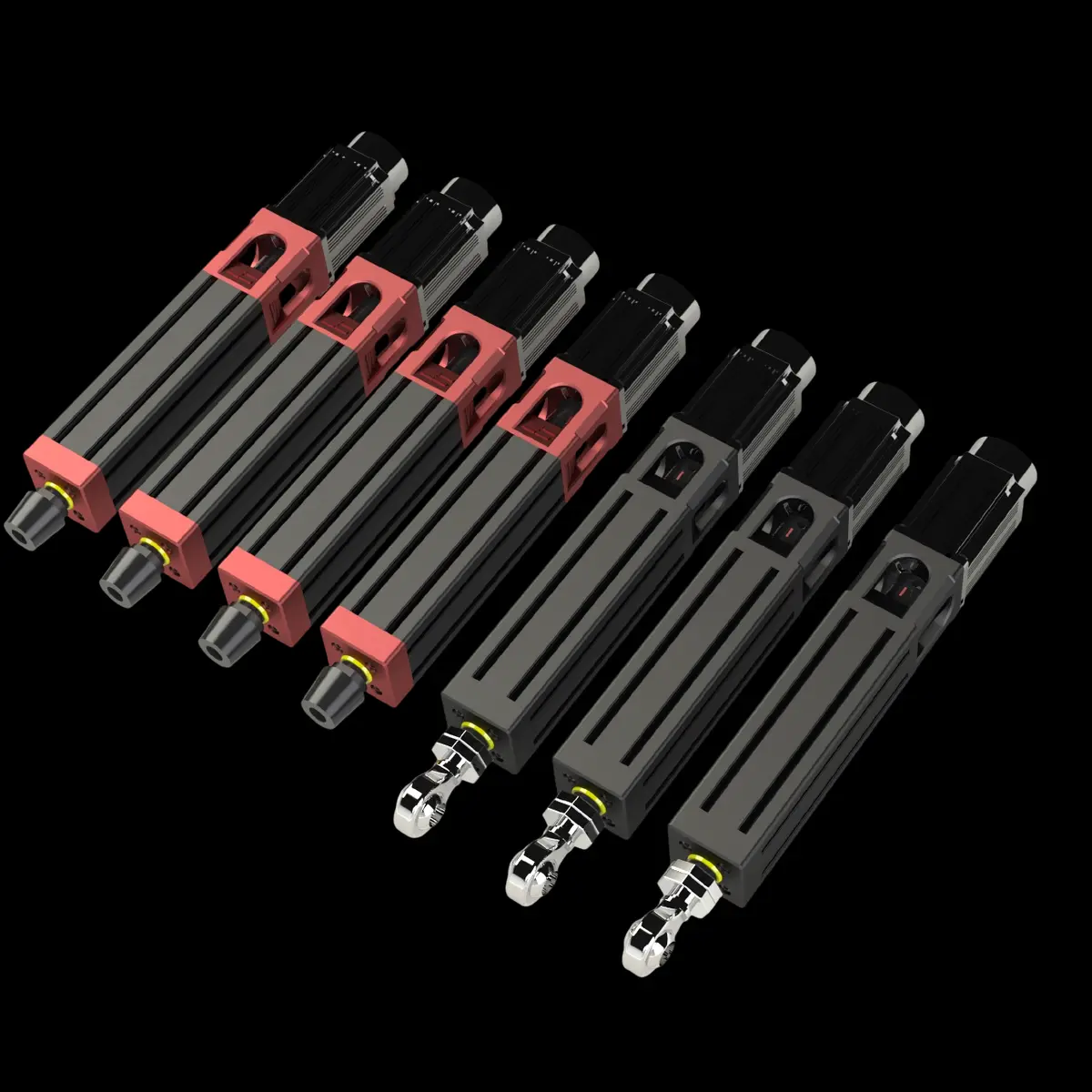

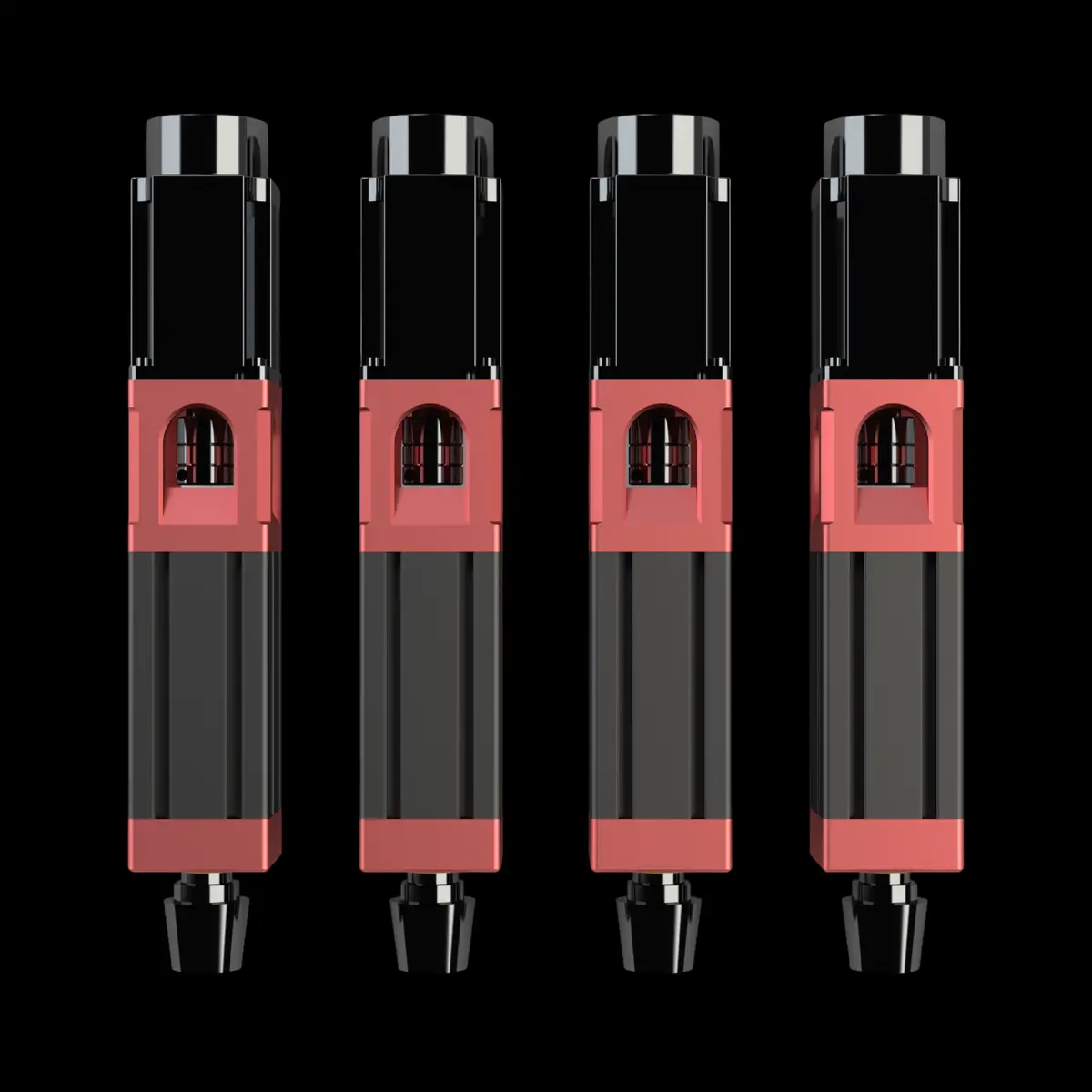

Stroke: 150mm push and pull

Speed: 250mm/s

Servo Motor: 80mm flange, 750w

Max Load: 180kg per actuator

Voltage: 110-220V

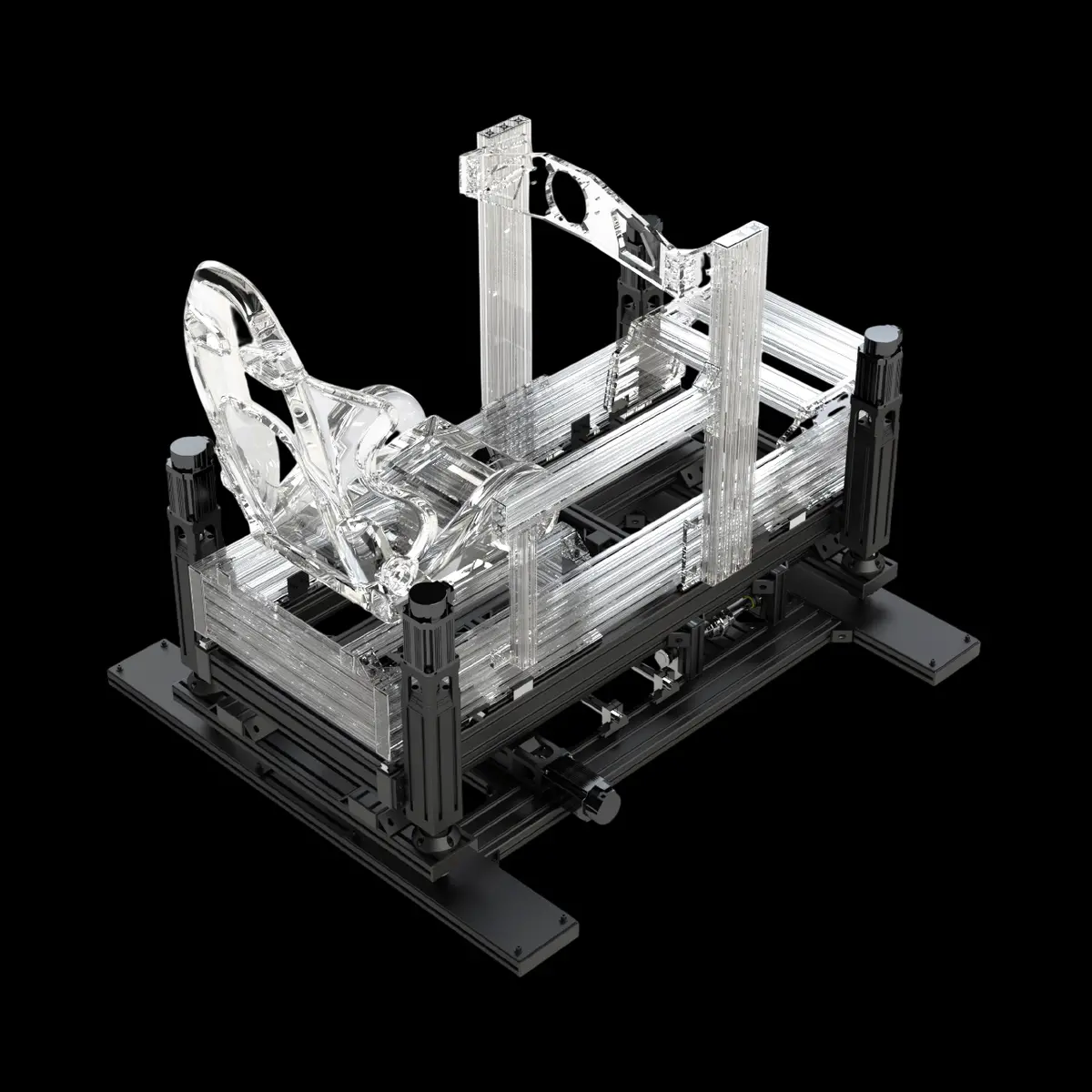

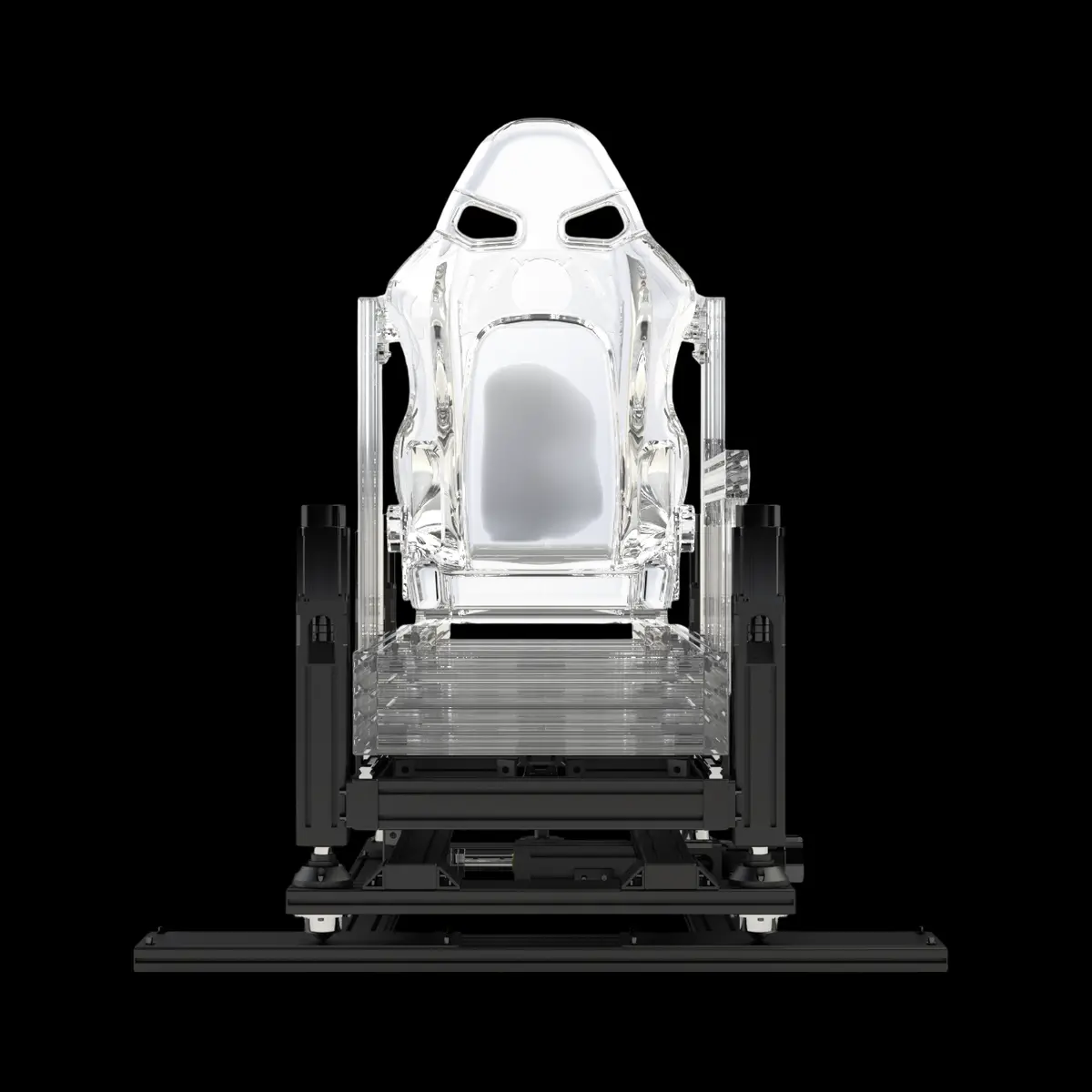

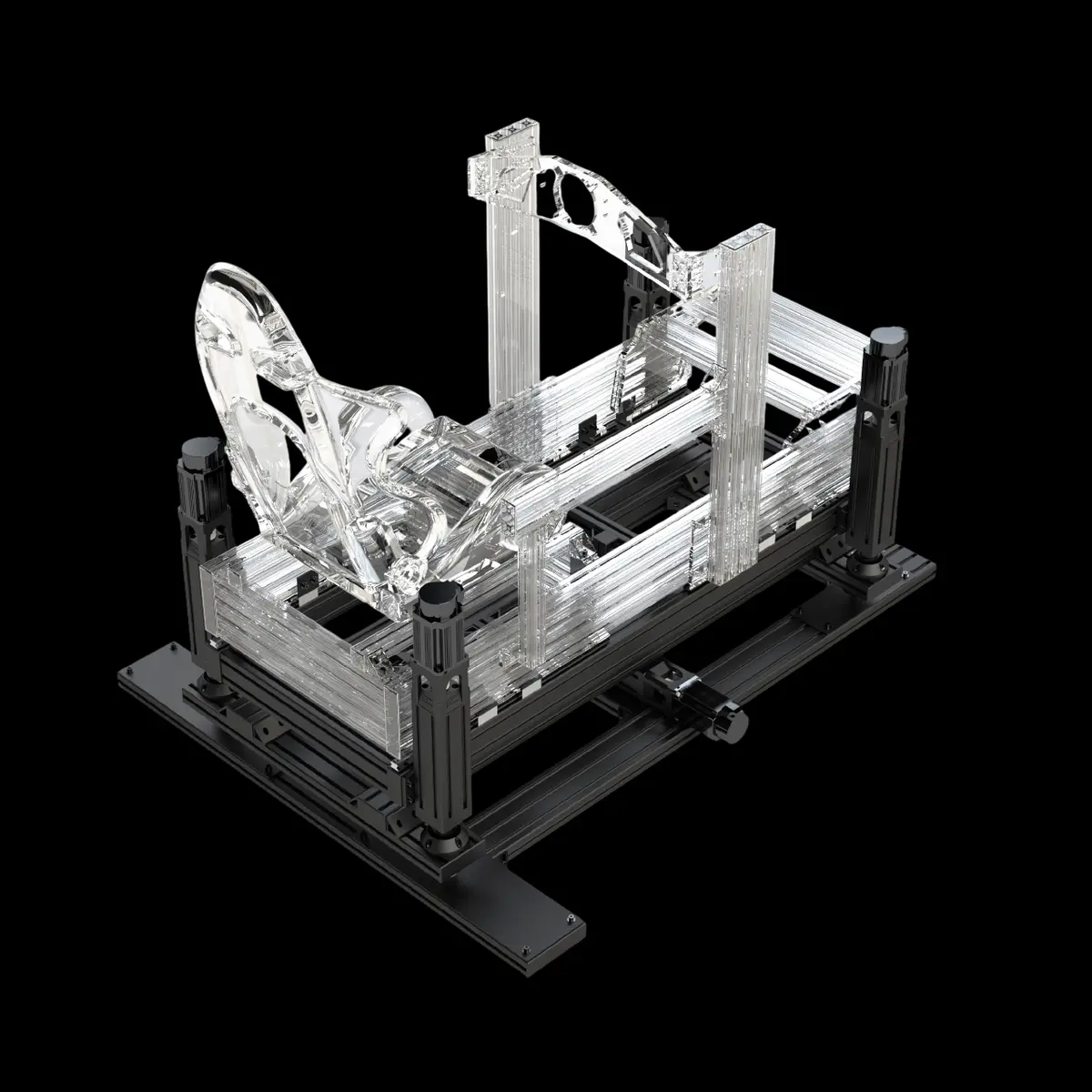

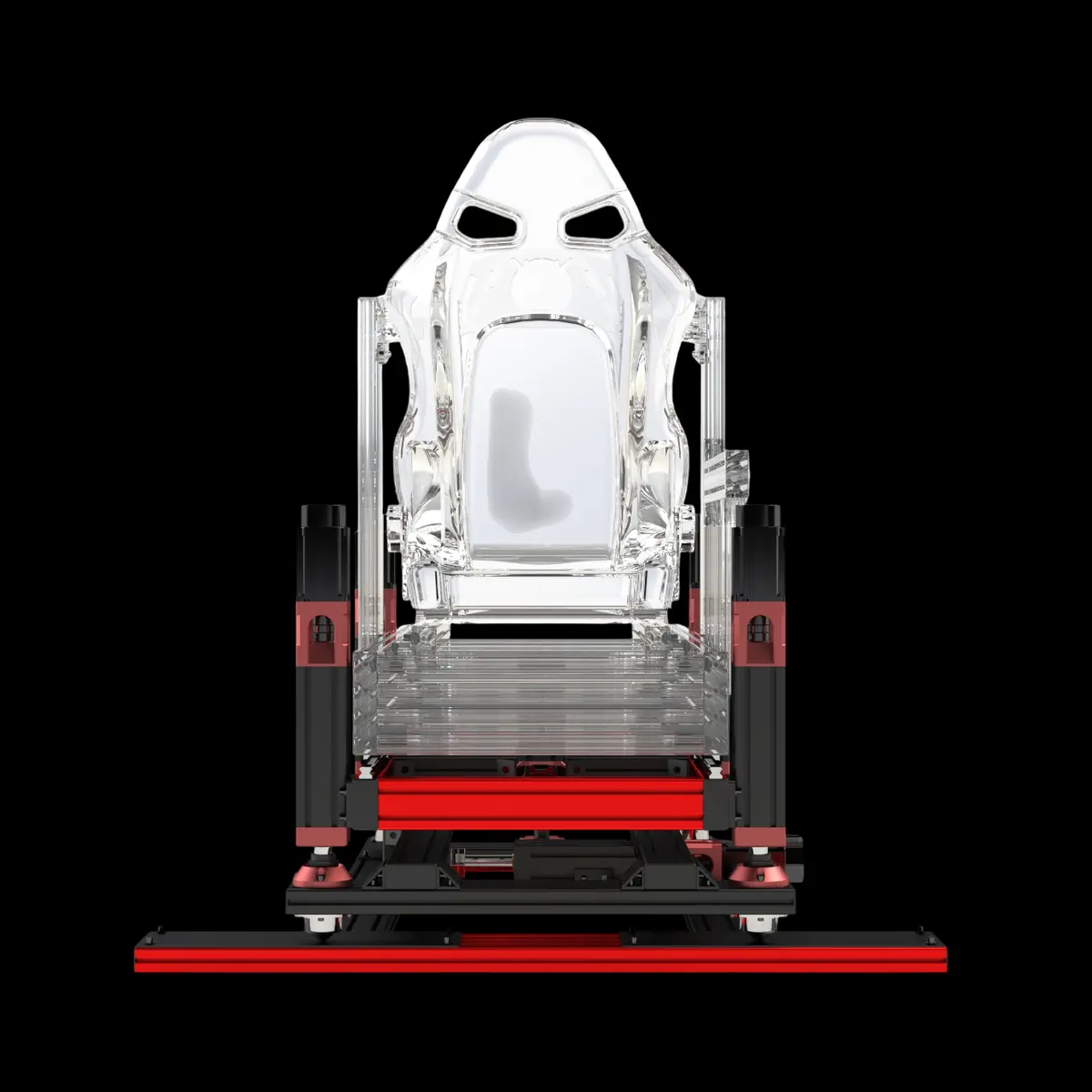

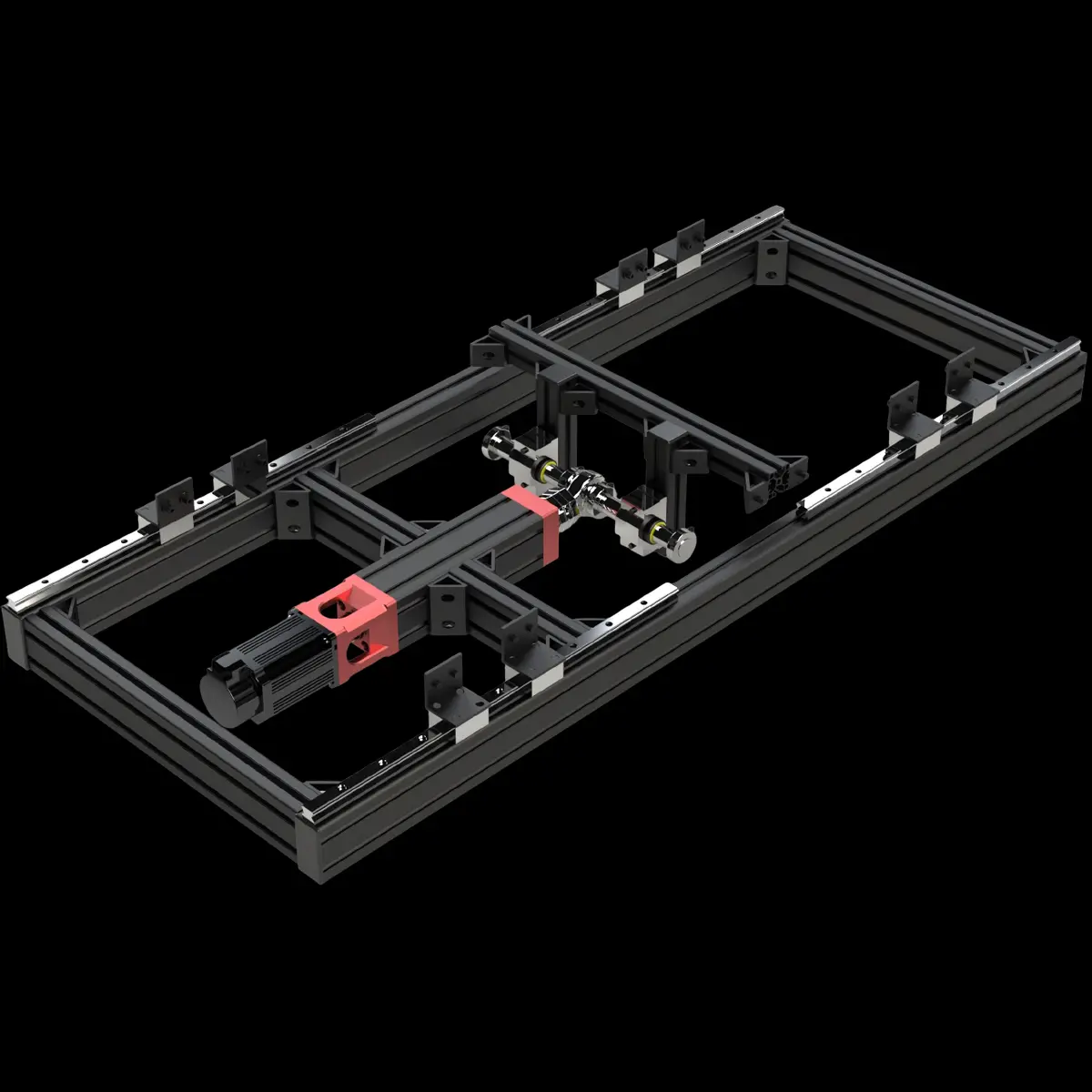

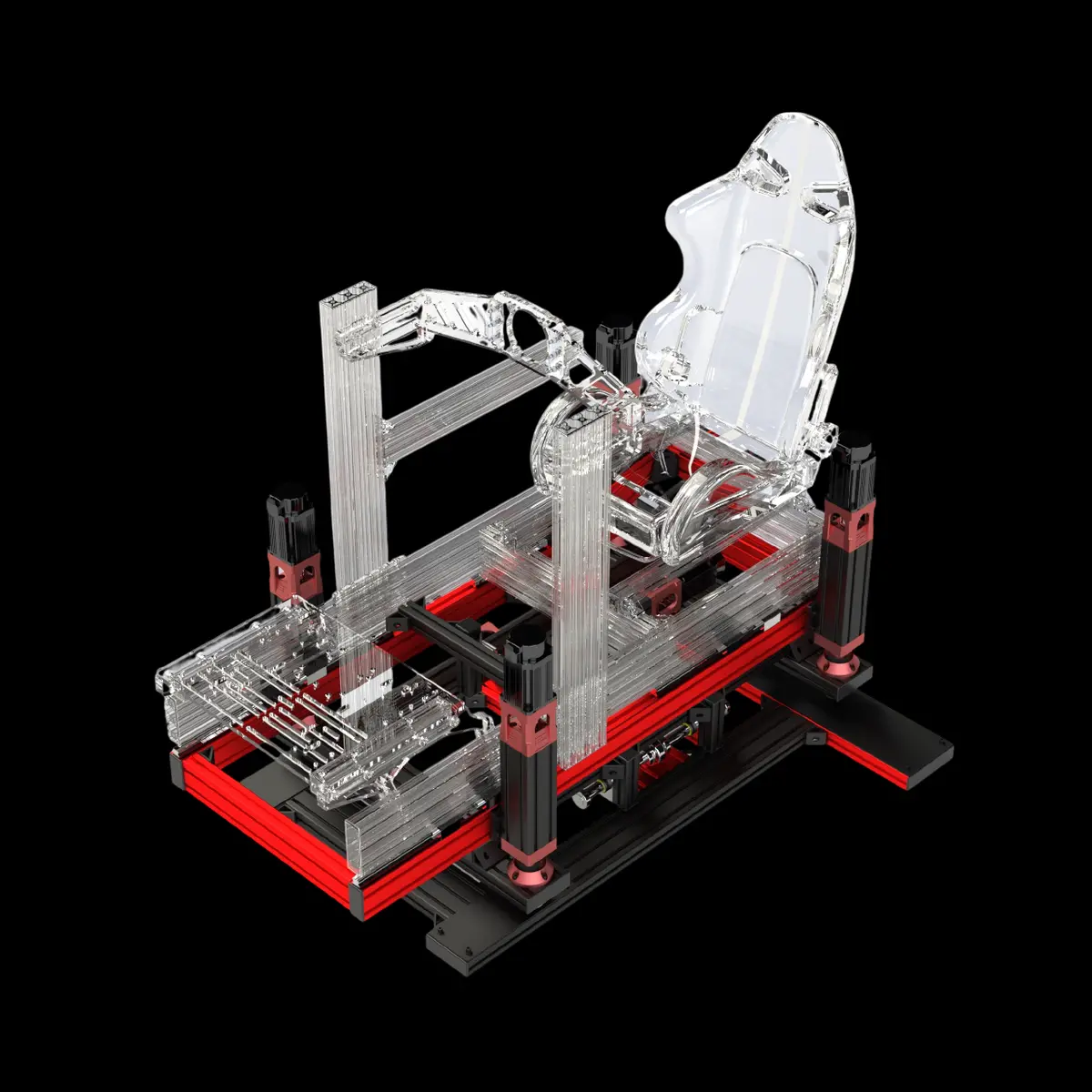

Standard Ultimate Platform, fits cockpit with wheel house Dashboard / Front Mount of a 500mm width , with full dimensions of the traction loss L x W=1230 mm W=1250mm and Surge platform L x W L=1400mm W=580mm.

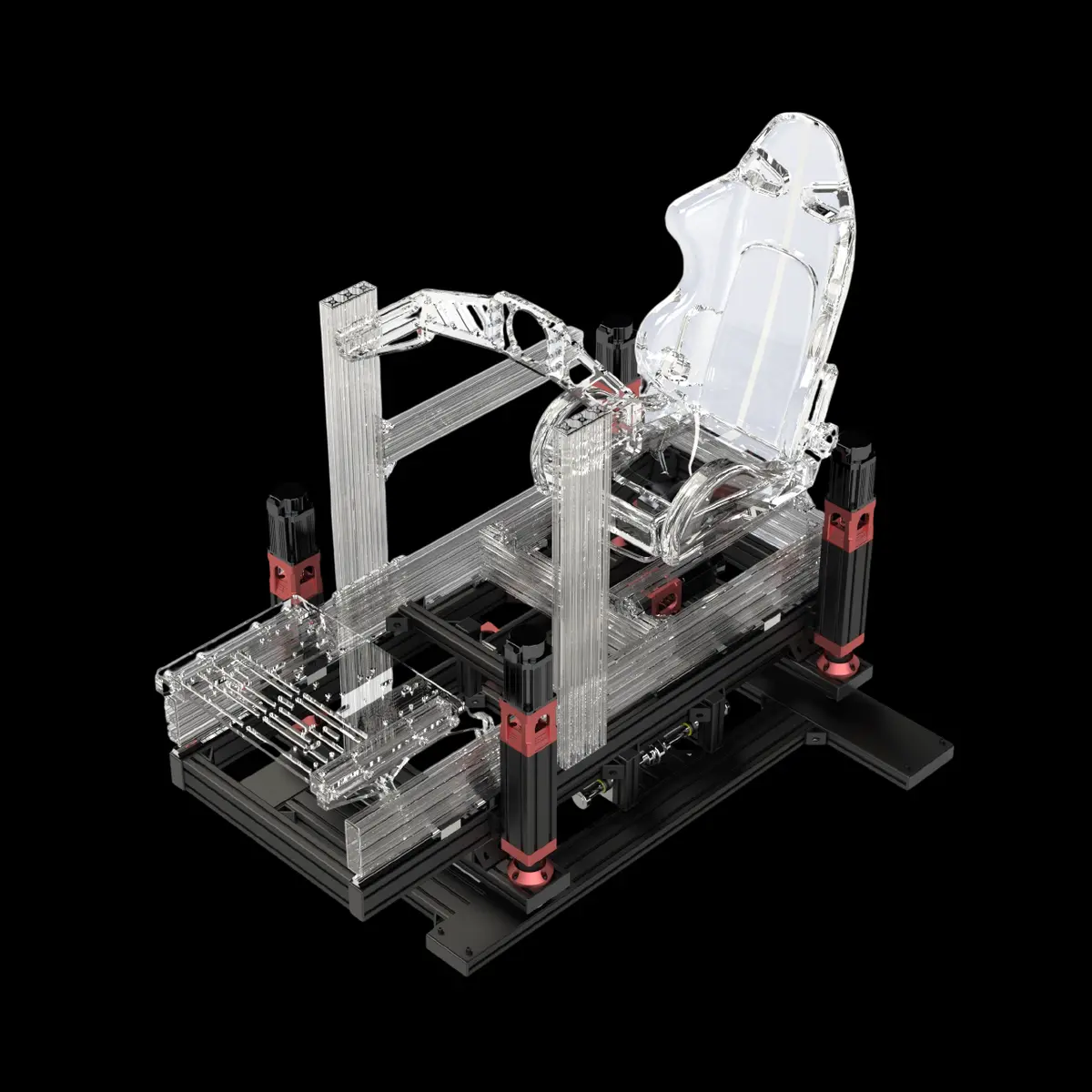

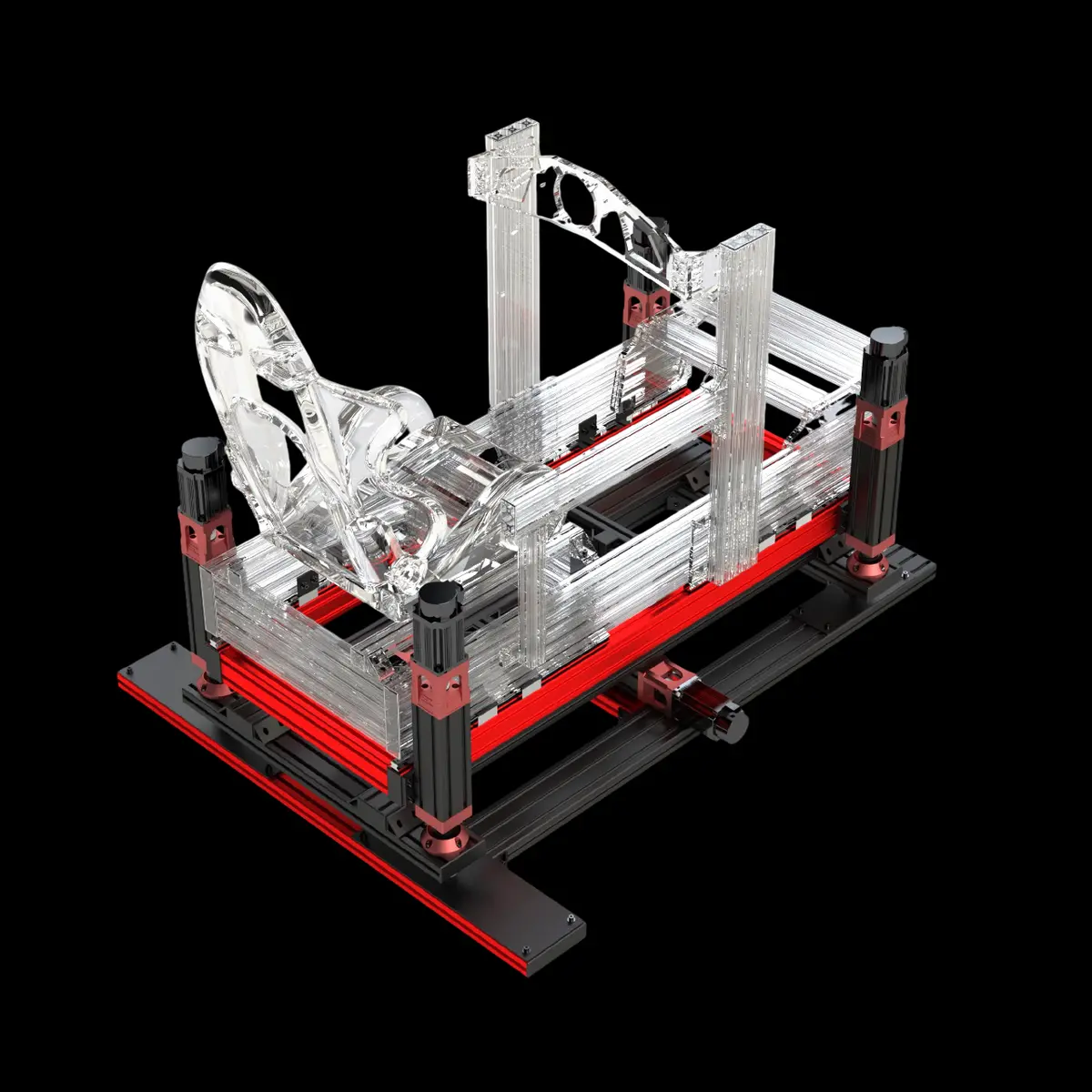

Extended Ultimate Platform, fits cockpit with wheel house Dashboard / Front Mount of a 500mm width , with full dimensions of the traction loss L x W=1560 mm W=1250mm and Surge platform L x W L=1400mm W=580mm.

Thanos AMC Controller

Fully detailed LCD menu system (RGB screen)

Supports up to 7 servos

Automatic Home calibration on power up or re-connection without limit switches

Automatic motion between Park position and Standby position and Online positions with adjustable timeout timers and speeds.

Protection from exceeding physical limits of the actuator

Optional Platform Health check, to ensure all actuators are active during gaming

Adjustable stroke up to 2540mm

Adjustable screw lead Pitch, 4mm, 5mm, 10mm or 25mm advance per revolution

Adjustable direction for Inline or Foldback placement of servomotor

Optional selection of belt reduction ratios (1:1, 1:1.5, 1:2) for foldback actuators.

Support for rotary actuators

200kHz pulse rate for positioning

Latency as low as 1ms in SRS, FlyPT Mover and Simtools

E-stop, Park/Standby, Force Offline buttons and LED indicators

Remote parameters via PC software interface

Rolling Average Filter for anti-vibration pulses on the servomotor

Spike Filter to automatically eliminate jolts during crashes or unwanted motion cues
