Description
Features:

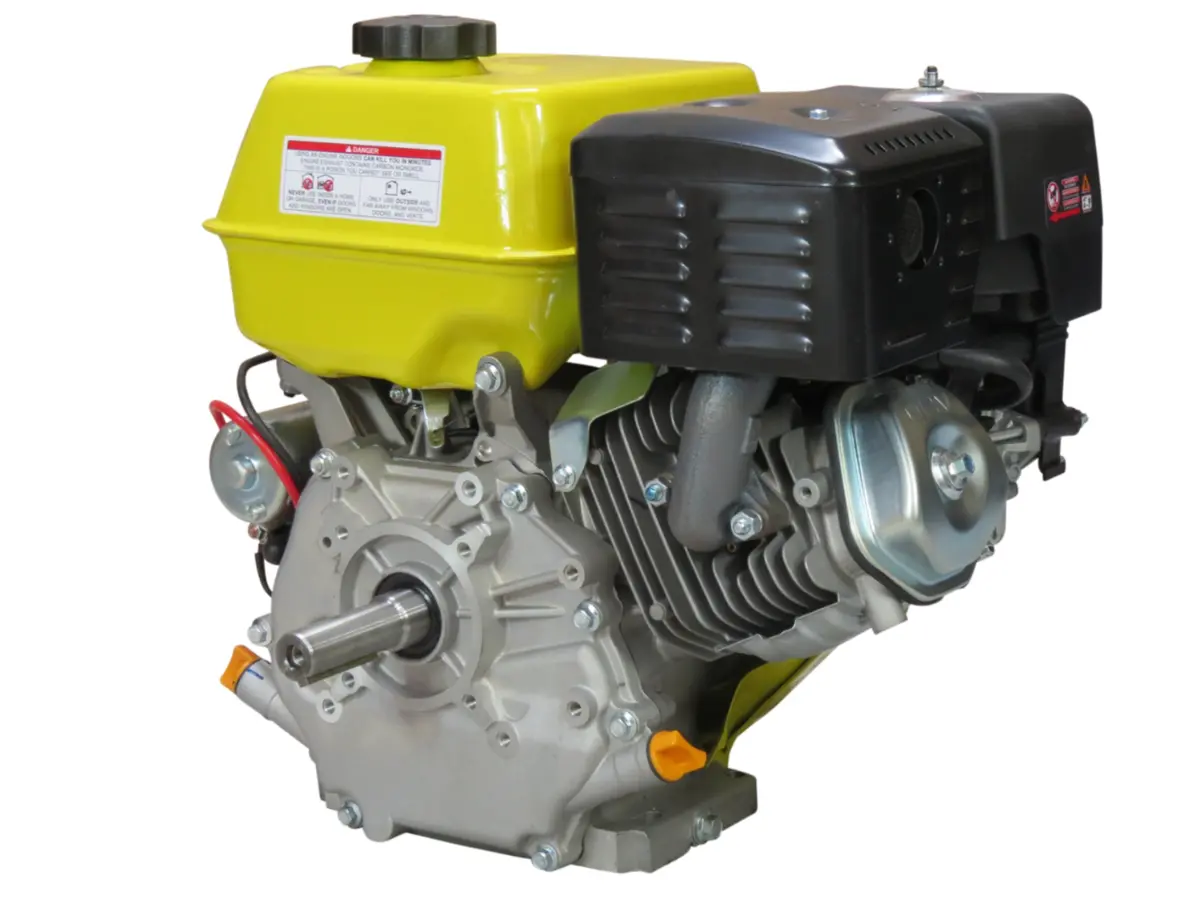

- 9HP OHV petrol 4 stroke engine
- Electric start – battery leads included
- Charge coil charges battery while engine is running
- Recoil start for backup
- Four stroke, single cylinder, air-cooled
- Displacement – 270cm³
- Bore x stroke – 77x58mm
- Compression ratio – 8.2:1
- Output shaft – 1” with ¼” keyway
- Output direction – counter clockwise
- Output shaft length 70mm
- Fuel tank capacity – 6.5L
- Fuel consumption; 2.5L/hour @3600rpm
- Net Weight – 25kg
- Dimensions (LxWxH); 380x430x410mm
- Base mount bolt pattern 195.5mm wide x 96mm deep
- Bolt holes around the shaft are 80mm square – centre to centre
The 4-stroke Over Head Valve design of the motor makes it economical and reliable.
Titan engines are full industrial spec with
- Cast iron cylinder liner
- Ball bearing supported crankshaft
- Dual element air cleaner
- Mechanical decompressor
- Industrial governor system
- Low oil cut out system
FREE Service Pack
Valued at $79.00!!Includes;
- 2 x 1L engine oil
- 1 x replacement air filter
- 1 x NGK spark plug
- 1 x spark plug spanner
Get The RIEQUIP Advantage!
- Every item test run before dispatch
- 1 year warranty
- Approved service agents nationwide
- Guaranteed spare parts backup for the life of your equipment!
