Description

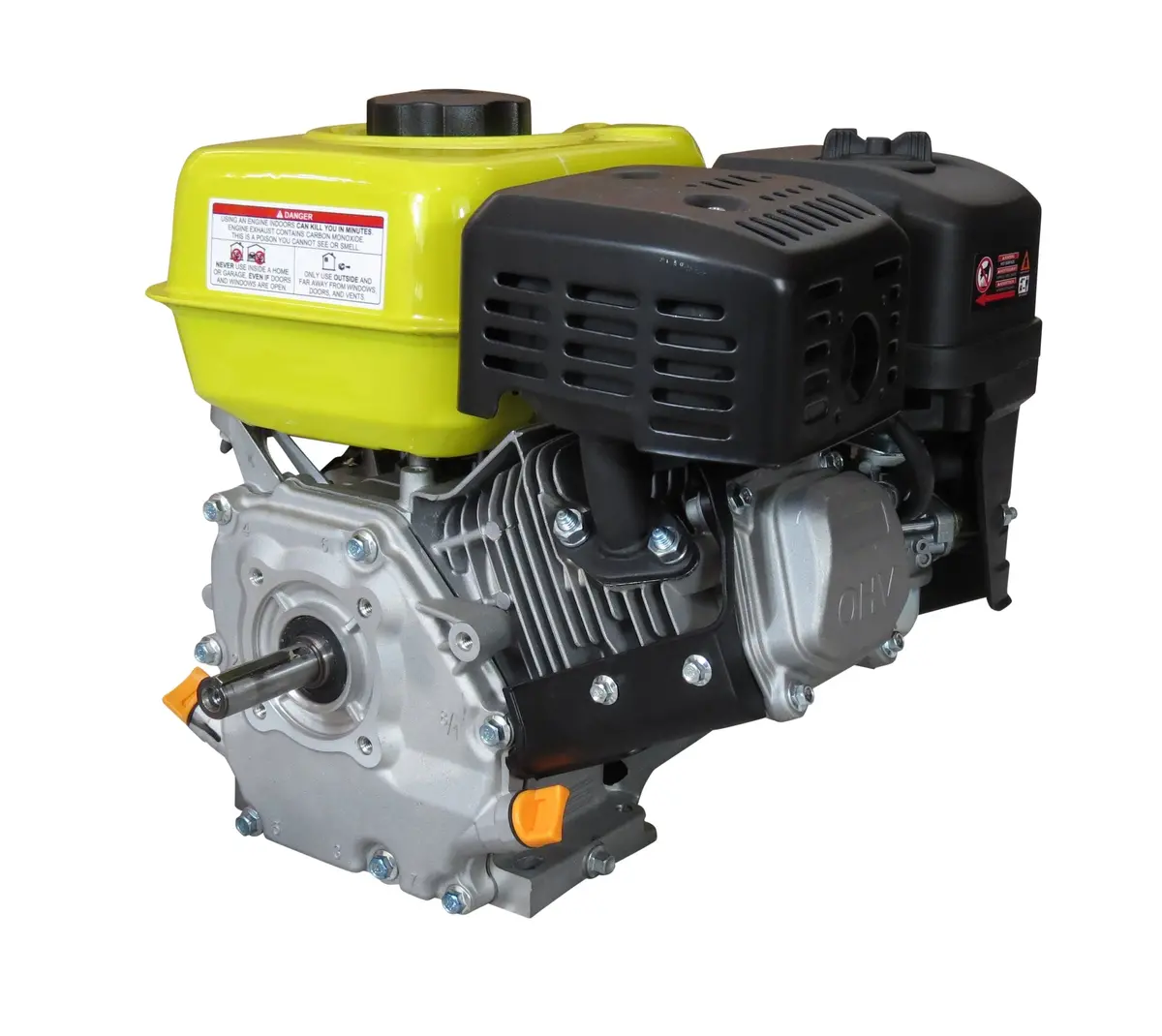

- 7.5HP 4 stroke petrol engine
- Engine is easy starting OHV design
- Recoil start
- Four stroke, single cylinder, air-cooled
- Displacement – 220cm³
- Output shaft – 3/4″ keyed
- Output direction – counter clockwise
- Fuel tank capacity – 3.5L
- Fuel consumption; 2L/hour @3600rpm
- Net weight – 15kg
- Dimensions; 375mm(W) x 335mm(H) x 310mm(D)
- Bolt holes around the shaft of the engine 65mm square.
Distance between the 4 x Bolt Holes on the base plate of motor:
Width: 164mm from centre hole to centre hole (actual bolt hole size = 10mm)
Depth: 77mm from centre hole to centre hole(With an hole 10mm x 14mm to allow for adjustment).
The 4-stroke Over Head Valve design of the motor makes it economical and reliable.
Titan engines are full industrial spec with
- Cast iron cylinder liner
- Ball bearing supported crankshaft
- Dual element air cleaner
- Mechanical decompressor
- Industrial governor system
- Low oil cut out system
FREE Service Pack
Valued at $59.00!!
Includes;
- 1 x 1L engine oil
- 1 x replacement air filter
- 1 x replacement NGK spark plug
- 1 x spark plug spanner
Get The RIEQUIP Advantage!
- Every item test run before dispatch
- 1 year warranty
- Approved service agents nationwide
- Guaranteed spare parts backup for the life of your equipment!
