Description
Testimonial….
“Great trade, This Titan 16HP motor is excellent, great price too. Would definitely recommend these guys to buy from, fast communication as well. What more could you ask for.” Customer, Timaru
Features:

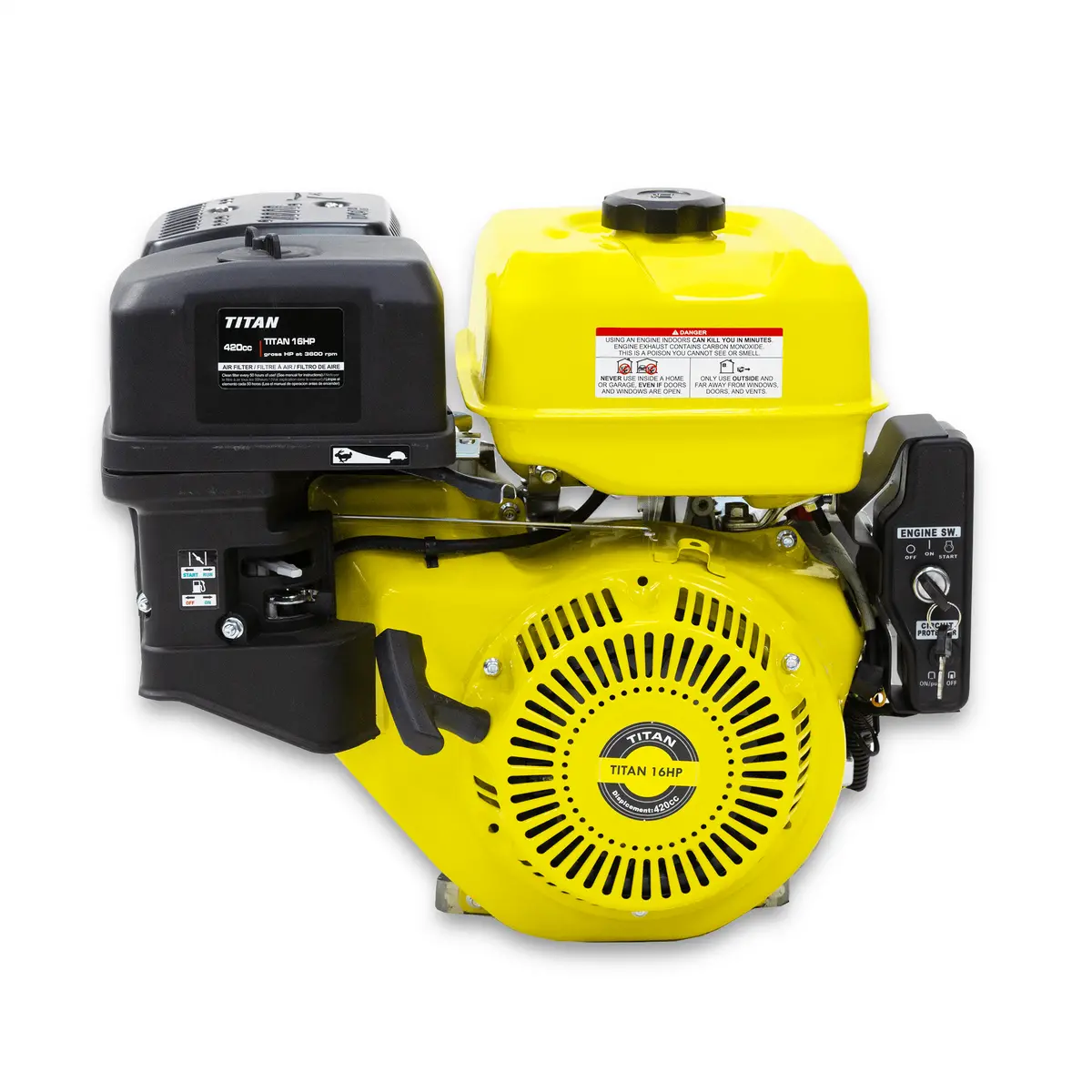

- 16HP OHV petrol 4 stroke engine
- Electric start – battery leads included
- Recoil start for backup
- Four stroke, single cylinder, air-cooled
- Displacement – 420cm³
- Bore x stroke – 90x68mm
- Compression ratio – 8.5:1
- Output shaft – 1” with ¼” keyway
- Output direction – counter clockwise
- Output shaft length 70mm
- Fuel tank capacity – 6.5L
- Fuel consumption; 3.9L/hour @3600rpm
- Net weight – 33kg
- Dimensions (LxWxH); 405x470x443mm
-Base Mount Bolt Hole Measurements 195mm Across x 99-103mm Deep
-Bolt holes around the shaft measure 90mm square, centre to centre
-Same as Honda GX390 Measurements
The 4-stroke Over Head Valve design of the motor makes it economical and reliable.
Titan engines are full industrial spec with
- Cast iron cylinder liner
- Ball bearing supported crankshaft
- Dual element air cleaner
- Mechanical decompressor
- Industrial governor system
- Low oil cut out system
FREE Service Pack
Valued at $79.00!!Includes;
- 2 x 1L engine oil
- 1 x replacement air filter
- 1 x NGK spark plug
- 1 x spark plug spanner
Get The RIEQUIP Advantage!
- Every item test run before dispatch
- 1 year warranty
- Approved service agents nationwide
- Guaranteed spare parts backup for the life of your equipment!
