Rato 7 HP Engine – 20 mm Keyed Crankshaft Assembly

Description

.cs{} .cs918EB24{text-align:center;margin:0pt 0pt 10pt 0pt;line-height:1.15;text-indent:0pt} .cs95B300B{11pt;font-weight:normal;color:#000000;font-style:normal;Calibri;} .csD65062B{13.5pt;font-weight:bold;color:#000000;font-style:normal;Calibri;} .cs156A587{11pt;font-weight:normal;color:#000000;font-style:normal;margin:12pt 0pt 12pt 0pt;text-align:left;line-height:1.15;list-style-type:circle;Courier New} .csD94D10C{11pt;font-weight:normal;color:#000000;font-style:normal;margin:12pt 0pt 12pt 0pt;text-align:left;line-height:1.15;list-style-type:disc;Arial} .csB95D3F4{border-top:none;border-left:none;border-bottom:none;border-right:none;padding:0.75pt 0.75pt 0.75pt 0.75pt} .cs13DCAC4{text-align:left;margin:12pt 0pt 12pt 0pt;line-height:1.15;text-indent:0pt} .cs3388614{text-align:left;margin:0pt 0pt 10pt 0pt;line-height:1.15;text-indent:0pt} .cs75B323B{11pt;font-weight:bold;color:#000000;font-style:normal;Calibri;}

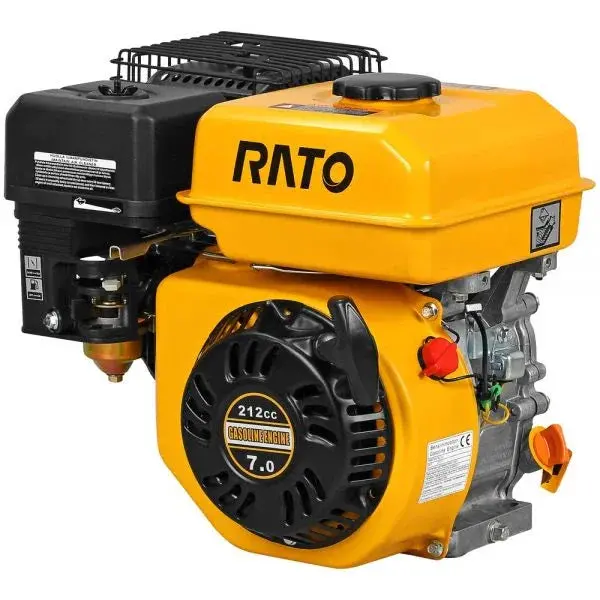

Product Description – Rato R210-20 Engine

Overview
The Rato R210-20Â is a rugged and versatile 4-stroke OHV gasoline engine, engineered to deliver consistent, reliable power for a wide array of applications—from generators and pressure washers to pumps and compact agricultural equipment. Its horizontal-shaft design with a 19 mm keyed crankshaft ensures compatibility with a variety of mechanical setups.

Key Features

• Displacement & Performance
  • 212 cc single-cylinder air-cooled engine achieves around 7 HP (4.8 kW) at 3,600 rpm and 12–13 N·m torque at 2,500 rpm
• Efficient Design
  • Overhead-valve (OHV) layout paired with a flat suction valve carburetor for improved combustion and fuel economy
• Start-up Options
  • Equipped with either a recoil starter or electric start option, offering flexibility to suit user preference and application
• Durable Build
  • Features a transistorized magneto ignition system (TCI), centrifugal mechanical governor, cast iron cylinder liner, and forged steel crankshaft for long-lasting performance
• Compact & Sturdy
  • Dimensions: 390 x 320 x 345 mm; Weight: ~17 kg

Specifications at a Glance

Applications
Ideal for powering light to medium-duty equipment—including portable generators, water blasters, pressure washers, pumps, tillers, and other do-it-yourself or semi-professional machinery.

Why Choose the R210-20?

• Reliability: Built with robust components like cast-iron cylinder liners and a hardened crankshaft.
• Flexibility: Recoil or electric start options plus horizontal shaft setup accommodate diverse user needs.
• Performance: Balanced power output and torque, with smooth and fuel-efficient operation.

Support: Comes with a solid 2-year / 500-hour domestic warranty in Australia
