VSR150K
A programmable voltage sensitive isolator suitable for dual battery systems in any large 4WD, caravan or marine application. Suitable for both 12 volt and 24 volt vehicles
Functions:
-
Factory default settings will allow the unit to engage when the main start battery reaches a voltage of 13.3Volts. The isolator will disconnect when the start battery reaches 12.8Volts, with a delay of 10 seconds.
-
Programmable voltages: (optional)
-
The unit is completely programmable to suit your vehicle’s voltage requirements.
-
Once installed, the isolator will allow you to ‘SET’ both the Cut-In voltage and the Cut-Out Voltage
-
Manual OVERRIDE function:
-
If the starter battery is flat and the aux battery is charged, the battery isolator ca be used to connect both batteries to allow for jump starting.
-
Press and hold the PUSH on the unit for 3 seconds, the LED display will show the combined voltage and the VSR150 will be in override mode for 60 seconds
-
Crank the engine. Once the engine has started the unit will automatically cancel the override function and return to the automatic charging function.
-
Specifications:
- Part no.: VSR150K
- Voltage: 12V
- Charging current: 125A continuous, 150A peak
- Cut-in voltage: 13.3V
- Cut-out voltage: 12.8V
- Cut-out delay: 10 seconds
- Minimum operating voltage: One battery above 8V
- Charge type: Parallel
- Control: MCU
- Mounting: Surface/firewall/battery side
- Current draw: Charging 300mA (standby 5mA)
- Surge protection: Built-in
- Approval: EMC

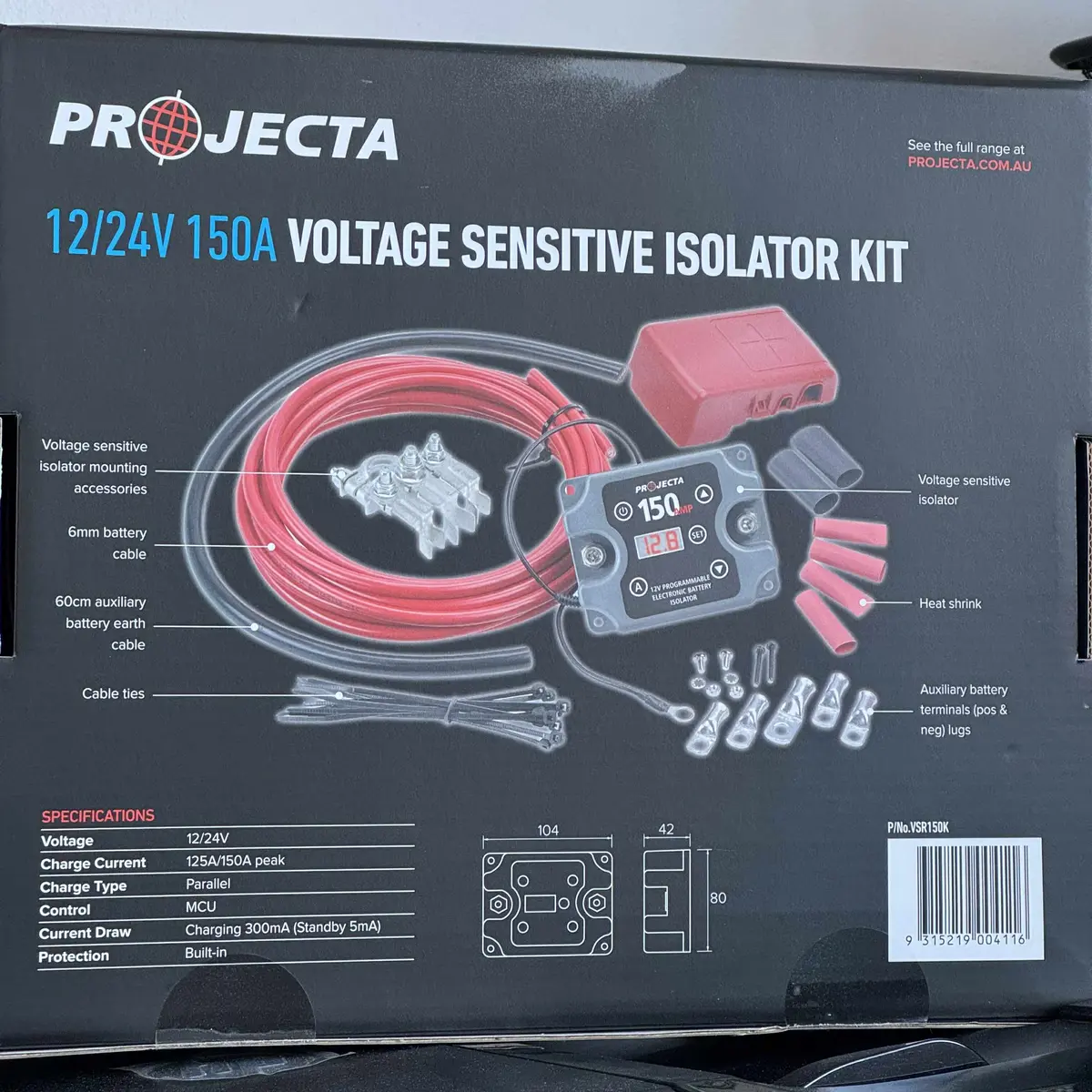

What’s included:
- Voltage sensitive isolator mounting accessories
- 6mm battery cable
- 60cm auxiliary battery earth cable
- Cable ties
- 150A Voltage sensitive isolator
- Heat shrink
- Auxiliary battery terminals & cable lugs
