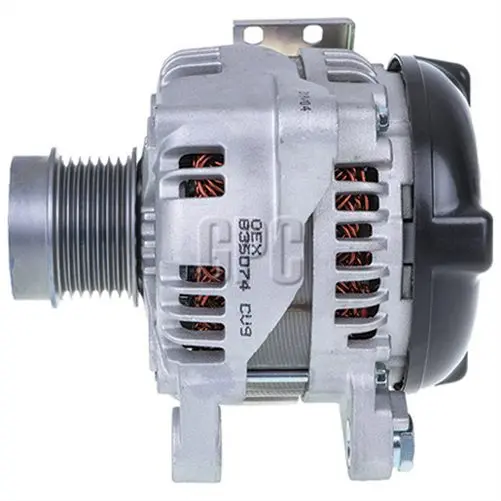

Oex 12V 100A Denso-Design Alternator for Toyota Blade & RAV4 (ACA22R) – Fits 104210, 3671, 4790

Description

OEX Alternator 12V 100A Denso Style DXA583 Toyota Blade Toyota RAV4 ACA22R 104210 3671 4790

Type ALTERNATOR
Brand OEX
Unit of Measure EACH
Description OEX Alternator 12V 100A Denso Style – See Note
Warranty 3yr Passenger 1yr Commercial
Adjusting Hole Diameter M8x1.25
Inside Mounting Legs 46mm
Pin Code IR116
Pivot Hole Diameter M10x1.25/11
Adj. Hole to Piv. Hole 864mm
Piv. Lug Length 20mm
Length Ft. to Ft 18 / 23mm
Power Rating (Amp) 100
Pulley Outside Diameter 55mm
Pulley Section 7 Groove / 7PV
Regulator Type Internal
Suits Unit Make Denso
Voltage 12
Note Option offered has RLO terminal in regulator plug – Use DXA582 if unit with Sense terminal required . ACX6250 may be required to confirm circuit configuration.
Alternator Mount Twin Leg
Mount Cnt to Cnt 123mm
New / Reman. New
Weight 6kg

Features

• Option offered has RLO terminal in regulator plug
• Use DXA582 if unit with Sense terminal required
• ACX6250 may be required to confirm circuit configuration.

To suit:
Toyota RAV4 ACA22R 2.4L 2AZ-FE
AVENSIS VERSO
CAMRY
VISTA
WISH
MARK X ZIO
ESTIMA
HARRIER
Denso Alternator 104210-3671 12v 100amps
Denso Alternator 104210-4790 [27060-28300] 12v 100amps

and others.

If you are unsure if this part will fit your vehicle please contact us with your registration number and we can check our system
OEX Alternator
With a reputation built on quality and reliability, the OEX Alternator range is designed to meet the needs of many Australasian vehicles, no matter their size.
OEX alternators are designed to withstand harsh environments, built by quality controlled manufacturers, with preferred suppliers operating under ISO 9001, so you can trust an OEX unit is built on quality.
Even though many alternators look the same, they aren’t. OEX is an Original Equipment alternative, and as such have an opportunity to improve the quality of the original parts. OEX has been known to improve clutches, pulleys, plugs and components to provide better value and product longevity.
