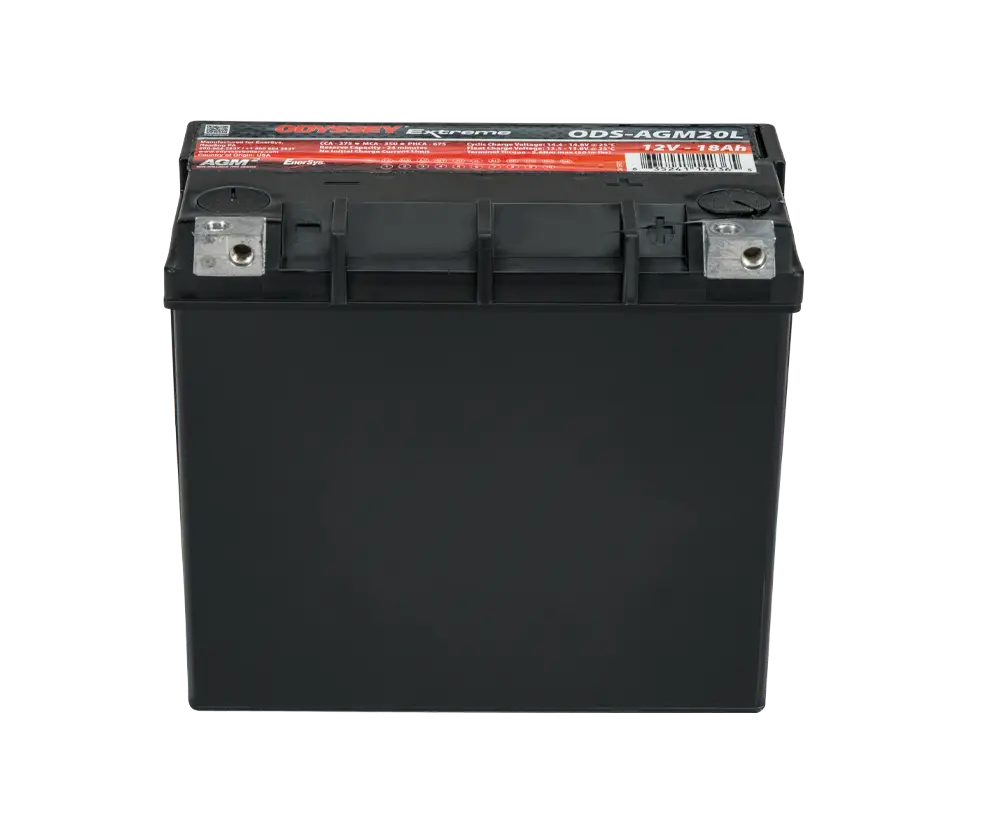

Odyssey ODS-AGM20L High-Cranking AGM Motorcycle Battery – 275 CCA, 18Ah

Description

The new ODS-AGM20L is a drop-in replacement for many popular motorcycle, ATV UTV, snowmobile and personal watercraft applications. The ODS-AGM20L offers more initial cranking power than our competitors and a drop-in fitment. Like all ODYSSEY powersports batteries, the ODS-AGM20L is a true dual-purpose battery and features a non-spillable Absorbed Glass Mat (AGM) design that’s built to take the pounding delivered by powersport vehicles.

Usually available 24 hours in-store after purchase

Direct equivalent to YTX20L-BS, MBTX20U, SVXT-1, ETX20L, YG20L-BS, STX20L-BS and more

Features:

• Thin Plate Pure Lead (TPPL) technology, contributing to twice the overall power and 3 times the life of conventional batteries
• A sealed design, resulting in a virtually maintenance-free battery
• The ability to resist extreme vibration, protecting against high impact shock vibrations that often lead to premature failure
• Deep cycle power, unlike any other product offered today, to handle all your extra electrical demands

• 2 years warranty (T&C apply)

Specifications:

• Voltage: 12V
• Pulse (5 second) Hot Cranking Amps (PHCA): 675A
• Cold Cranking Amps (CCA): 275A
• Hot Cranking Amps (HCA): 400A
• Marine Cranking Amps (MCA): 350A
• 20Hr Nominal Capacity (Ah): 18Ah
• 10Hr Nominal Capacity (Ah): 17Ah
• Reserve Capacity (Minutes): 24 mins
• Terminal: M6 Receptacle ( – + )
• Torque Spec (in-lbs / Nm max): 50 (5.6)
• Recommended Min. Charging Current: 1.7A
• UPC: 635241142365



Dimensions and Weight

• Length : 6.9 in / 175 mm
• Width : 3.4 in / 86 mm
• Height (terminals included) : 6.1 in / 155 mm
• Height (container) : 6.1 in / 155 mm
• Weight : 13 lbs / 5.9 kg
• Operating Temperature Range: -40°F / -40°C to 140°F / +60°C

Charging and Self-Discharge

• Cyclic Charge Voltage : 14.4 – 14.8V @ 25ºC
• Float Charge Voltage : 13.5 – 13.8V @ 25ºC
• Charger voltage at 68°F (20°C) : 14.4V to 14.8V
• Self-discharge per month at 68°F (20°C) :  1.25%
• Self-discharge per month at 104°F (40°C) : 5%
• 80% depth of discharge cycles 400

Warranty:

• 2 years for Auxiliary Power Unit (APU) and other non-engine start cycling applications.

• 2 years for power sports applications. (motorcycles, scooters, ATVs, jet skis)

• 3 years for commercial, industrial, marine and automotive applications in non-BCI sizes.
• 4 years for an engine starting application for PC1220, PC1350, PC2250 and all BCI sizes

Made in USA
