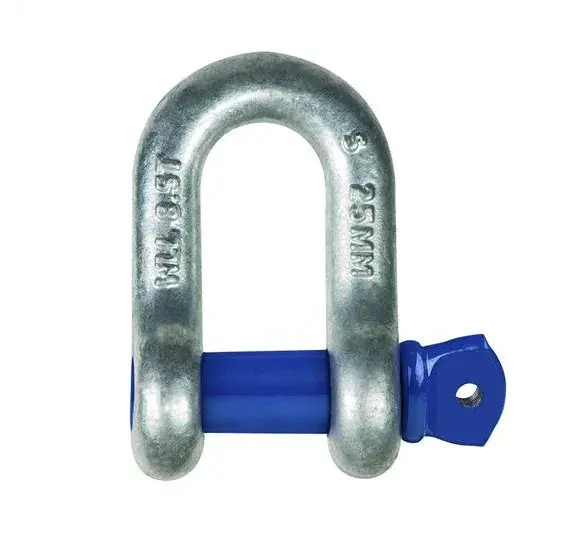

Austlift Grade S Dee Screw Shackle – Galvanised (504035)
Overview
The Austlift Grade S Dee Screw Galvanised Shackles are engineered for reliable lifting, towing, and general rigging applications. Manufactured to Australian Standard AS 2741 and finished with a hot-dip galvanised coating, these shackles combine strength, safety, and corrosion resistance. The Dee (D) profile is best suited for straight-line loads and applications where minimal side loading is expected.
Each shackle is clearly stamped with its Working Load Limit (WLL), grade, batch number, nominal size, and supplier ID—ensuring compliance, traceability, and peace of mind in demanding environments.
Key Features
- Grade S construction – high-strength alloy steel for dependable performance.
- Dee (D) shackle design – ideal for straight-line load applications.
- Screw pin fastening – simple and secure connection, quick to install/remove.
- Hot-dip galvanised finish – excellent resistance against rust and corrosion.
- Standards compliant – manufactured and tested to AS 2741.
- Clearly marked – WLL, grade, batch, and supplier ID for easy identification.
- Proof tested & safe – proof tested to 2 × WLL, with a minimum break force of 6 × WLL.
Typical Specifications
The range covers sizes 6 mm to 44 mm, with capacities from 0.5 t up to 25 t WLL.
|
Part Number |
Size (mm) |
WLL (t) |
Finish |
Type |
|
504006 |
6 |
0.5 |
Galvanised |
Dee Screw Pin |
|
504008 |
8 |
0.75 |
Galvanised |
Dee Screw Pin |
|
504010 |
10 |
1.0 |
Galvanised |
Dee Screw Pin |
|
504013 |
13 |
2.0 |
Galvanised |
Dee Screw Pin |
|
504016 |
16 |
3.2 |
Galvanised |
Dee Screw Pin |
|
504020 |
20 |
4.7 |
Galvanised |
Dee Screw Pin |
|
504025 |
25 |
6.5 |
Galvanised |
Dee Screw Pin |
|
504032 |
32 |
12.0 |
Galvanised |
Dee Screw Pin |
|
504038 |
38 |
18.0 |
Galvanised |
Dee Screw Pin |
|
504044 |
44 |
25.0 |
Galvanised |
Dee Screw Pin |
(Intermediate sizes available in the 5040__ series, each marked and compliant to AS 2741.)
Applications
- Lifting & rigging operations
- Transport & towing setups
- Mining, construction, and heavy industry
Marine & outdoor environments requiring corrosion resistance
