Canton Power Series Drag Race Oil Pan – Black Finish For Big Block Chevy Mark Iv Engines

Description

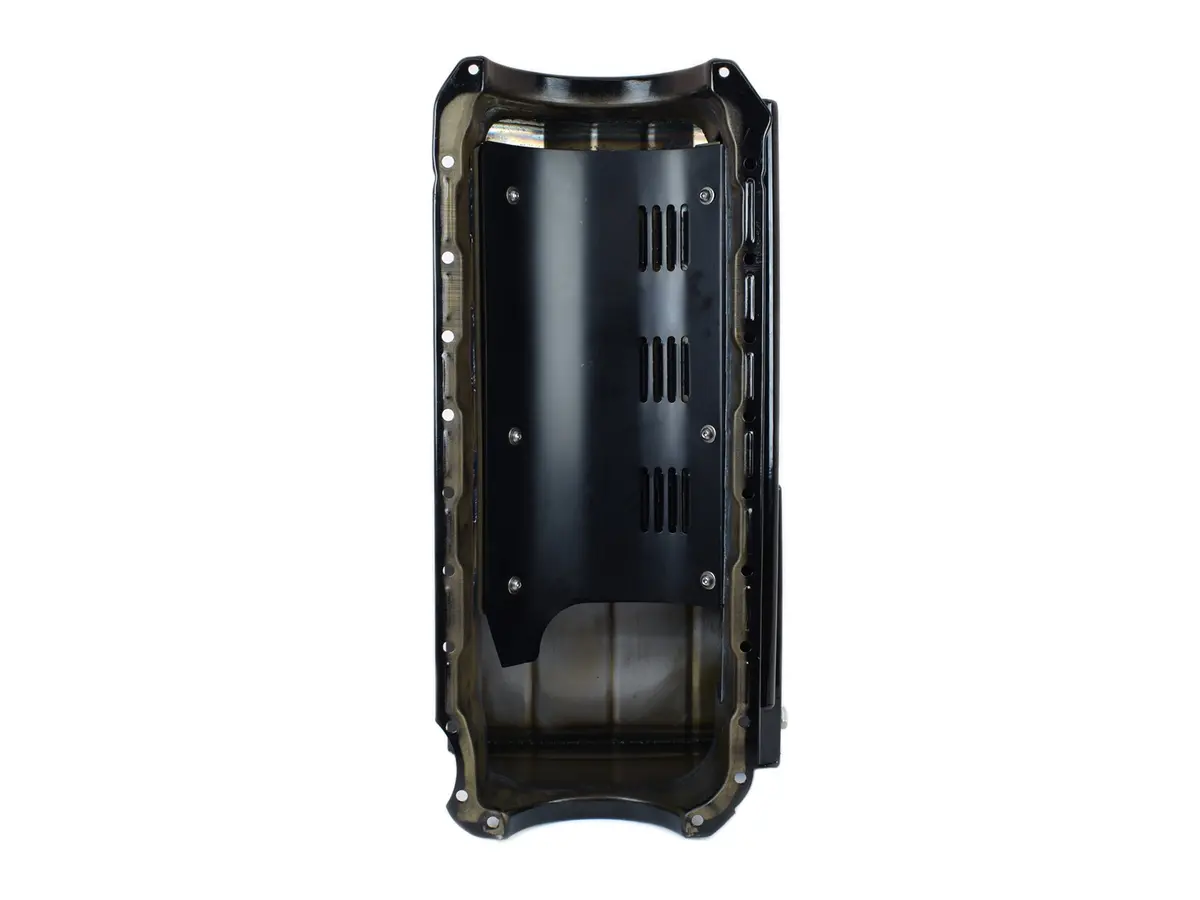

This black powdercoated drag race oil pan is for BBC Mark 4 blocks. It has an 8″ deep by 10″ long and 11-3/4″ wide sump and an 8qt. system capacity. Takes up to a 4.5″ stroke with a steel rod. This pan requires our 20-170 pickup. Will work with an aftermarket starter & a 168 tooth flywheel.

• 7 qt System Capacity
• Clears 4.5″ Stroke
• Trap Door Baffle
• Oil Recovery Pouch
• Built In Louvered Windage Tray
• Provision For Our Pan Mounted Dipstick
• Magnetic Drain Plug

Attributes:

• Brand Name: Canton
• GTIN: 00887753711847
• Baffled: Yes
• Capacity: 7 Quart System Capacity
• Crank Scraper Included: No
• Dipstick Port: Yes
• Drain Plug Included: Yes
• Engine: For B.B. Chevy Mark 4 Blocks
• Feature 1: Oil Recovery Pouch Extends Right Side of Pan Away From Crankshaft
• Feature 2: Recovery Pouch Thins Out Atmosphere of Oil in Crankcase and Frees up Horsepower
• Feature 3: Removable Louvered Windage Tray
• Feature 4: Trap Door Baffle For Oil Control
• Feature 5: Provision for Canton Pan Mounted Dipstick
• Feature 6: Magnetic Drain Plug
• Finish: Black Powdercoat
• Gasket or Seal Included: No
• Hardware Included: No
• Kicked Out: Yes
• Material: 16 Gauge Steel
• Pickup Included: No
• Recommended Accessory 1: 20-170 – Pickup for BBC Pumps
• Recommended Accessory 2: 20-850 – Universal Dipstick Kit 1/4? N.P.T. Fitting
• Recommended Accessory 3: 20-854 – Universal Steel Braided Dipstick Kit 1/4″ N.P.T. Fitting
• Recommended Accessory 4: 88-300 ? BBC Mark IV Oil Pan Gasket
• Stoke: 4.5 inches
• Sump Depth: 8 inches
• Sump Width: 11.75 inches
• Windage Tray Included: Yes

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 26 x 14 x 10 inches
• Weight: 17 POUNDS
