100W Flexible Monocrystalline Solar Panel – 12V Output

Description

100W SOLAR PANEL
100W PANEL
100W SOLAR
100W MONO SOLAR PANEL
100W FLEXIBLE SOLAR PANEL

50W SOLAR PANEL
100W SOLAR PANEL
150W SOLAR PANEL
200W SOLAR PANEL

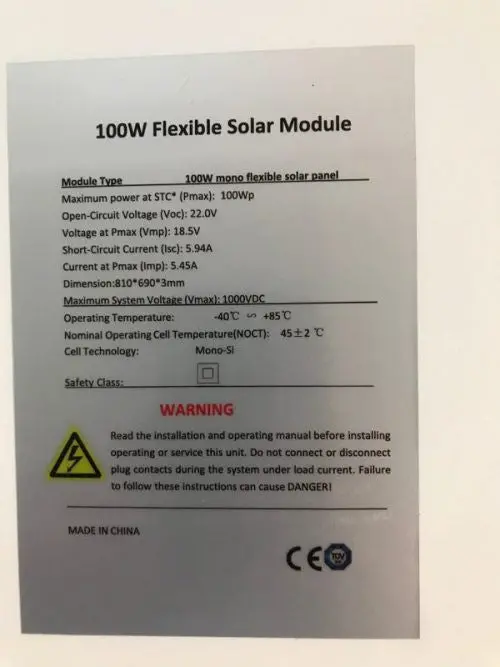

Model NO.
100w flexible mono panel

TypeFlexible
Power 100w
Length 810 mm
Width 690 mm
Thickness 3mm
Efficiency 21.5 %

Maximum Power (Pmax)
100w

Open Circuit Voltage (Voc)
22.0 v

Short Circuit Current (Isc)
5.94 A

Voltage at maximum power (Vmp) 18.5V

Current at maximum power (Imp) 5.45 A

No. of Cell
36

Weight
1.5

Temperature Coefficient of Pm
-0.47%/K

Temperature Coefficient of Voc
-0.35%/K

Temperature Coefficient of Lsc
0.11%/K

Tolerance
0 to +5%

Cell
160mm x 75mm

NOCT
48ºC+/-2ºC (118.4°F +/-3.6°F)

Operating Temperature
-40 to +85ºC (-40°F to +185°F)

Bypass diodes
3 diodes

Maximum mechanical load
Snow load: 5400PA(IEC Standard); Wind load: 2400Pa(IEC Standard)

Maximum series fuse rating
10A

Maximum System Voltage
1000 VDC (TÜV-EN/IEC61215) / 600VDC (UL)

Warranty: 12 months
